Stage Design Using CNC Milling: “The Eye” for My Chemical Romance’s Long Live the Black Parade Tour
Project
Overview
My Chemical Romance’s Long Live the Black Parade Tour demanded a stage built to match the band’s scale and legacy. Scott System partnered with TAIT, a global leader in entertainment engineering, to develop “The Eye,” a defining centerpiece of the production. The project called for CNC Milling of EPS Foam to produce components precise and consistent enough to sustain themselves night after night.
The Challenges

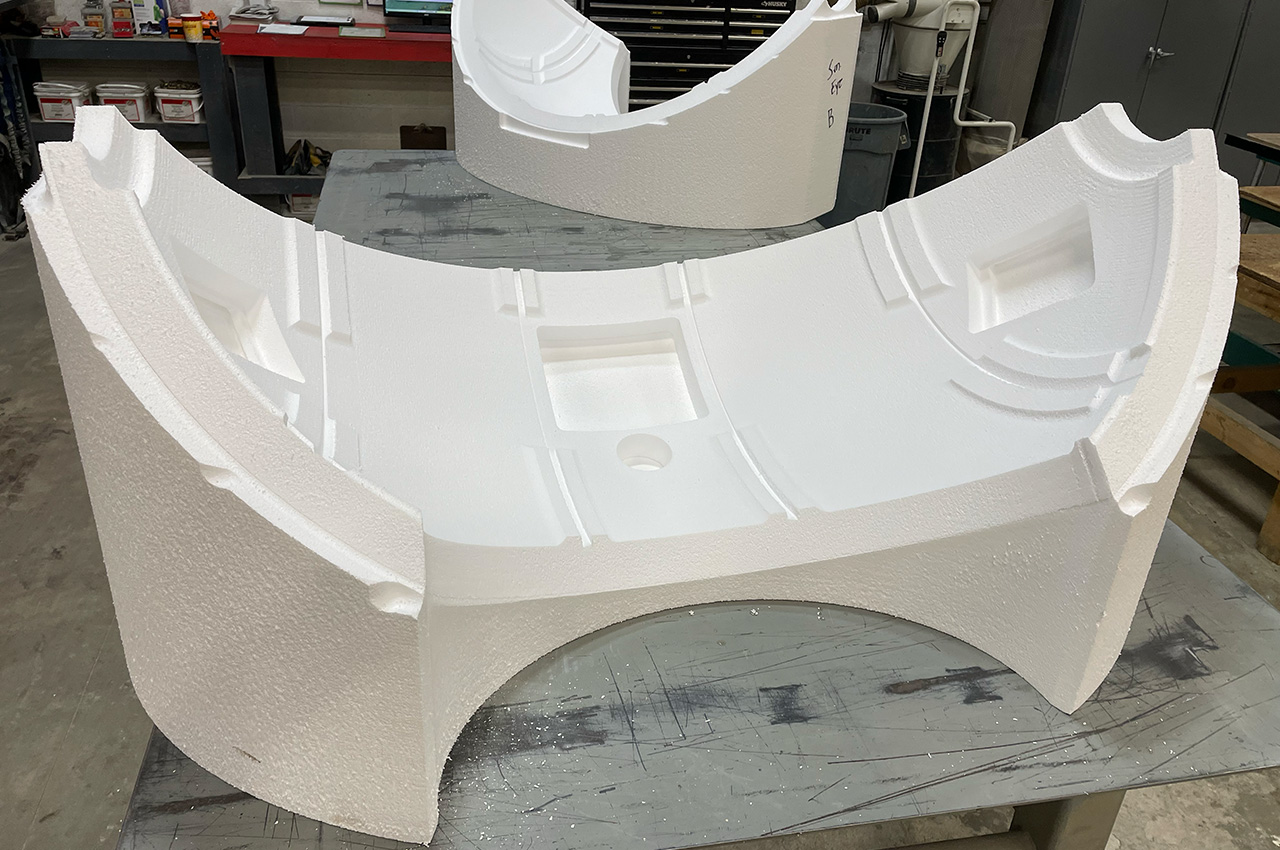

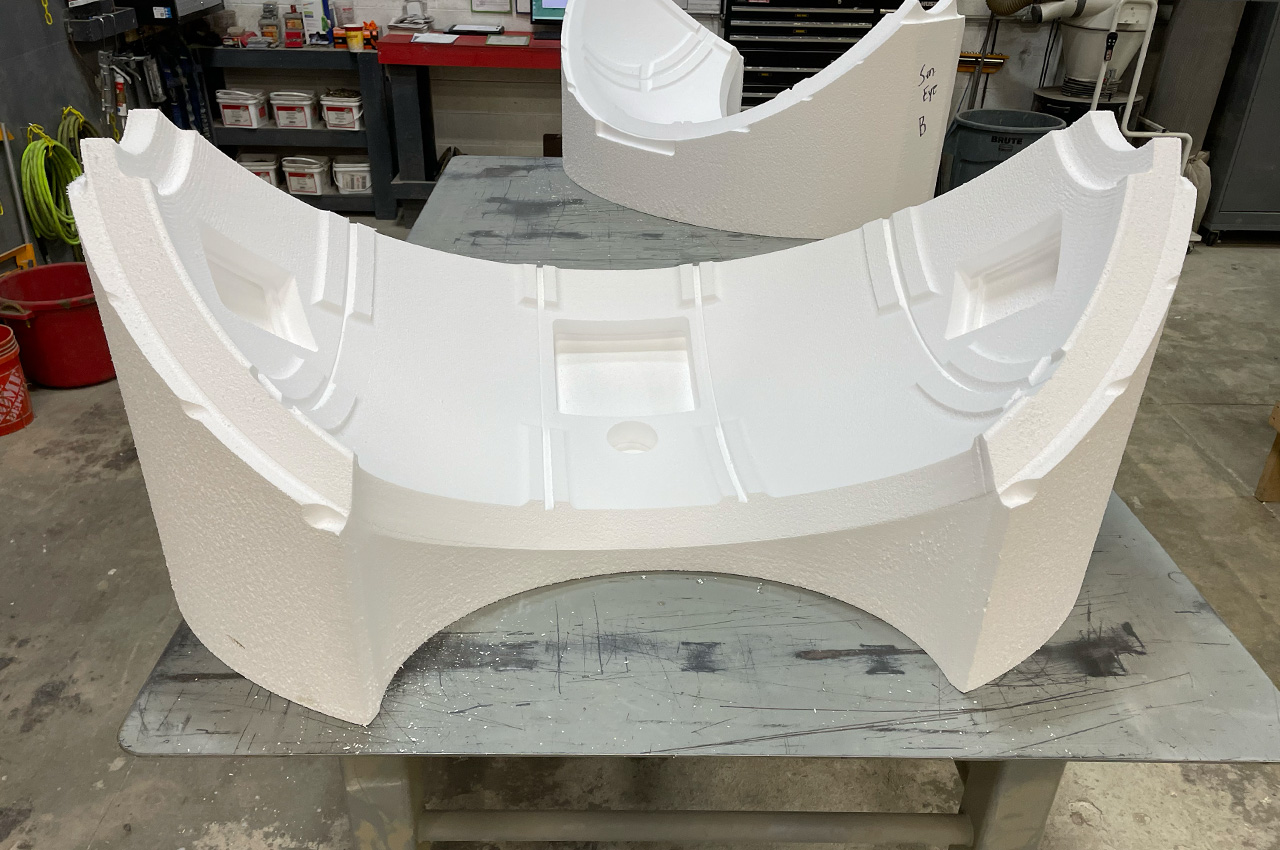

Stage design for live tours imposes demands far exceeding typical fabrication work. “The Eye” required complex three-dimensional geometry to be flawlessly replicated across multiple, large-format components. Maintaining structural and visual integrity was critical as the foam shapes would be hard coated, and later painted by TAIT. Slots throughout the interior of the shape allowed for TAIT to fit a skeleton like metal structure used to suspend “The Eye”. The dimensional accuracy of the slots were critical for the prefabricated metal structure as it was, installed days before final departure leaving no time for minor inconsistencies.
This combination of large scale and tight tolerances was the primary technical hurdle, as any subtle drift in geometry would compromise the design’s visual and structural cohesion. A fabrication approach was needed that could handle complex forms at volume without sacrificing precision or finish quality.
Want to Learn More About The Challenges?
The Vision
The artistic direction for the Long Live the Black Parade Tour drew on the imagery that My Chemical Romance built over its two decades: dark, theatrical, and exact in its symbolism. “The Eye” had to hold up to that aesthetic, serving as both a structural element and a visual anchor for the stage.
The vision called for exact replication of the 3D design intent, and a solid understanding of future processes.. Achieving that required CNC milling as the foundation of the fabrication process, ensuring the physical components matched the concept without compromise and performed reliably under the demands of touring.
Proposed Solution
To guarantee component consistency and touring practicality, Scott System leveraged CNC milling and 3D Design to create the components for “The Eye.” This digital-first approach eliminated the inconsistencies of manual shaping, allowing the team to work directly from computer-controlled design files.
The build process was engineered for precision, ensuring every component was milled to the same specification while the foam formwork provided the necessary flexibility for large, complex shapes.
Want to Learn More About Our Solutions?
Components for Success
Several factors drove the success of this project:
TAIT Partnership: Scott System’s collaboration with TAIT united fabrication expertise with world-class entertainment engineering at the highest level of touring production.
Engineered Consistency: The synergy between CNC milling and 3D Design ensured that the complex, large-scale geometry was reproduced with unyielding accuracy across all production units.
Scale Without Quality Loss: The fabrication methodology was designed to handle the required dimensions without sacrificing the tight tolerances essential to the visual and structural design.
The Outcome
The finished components for “The Eye” seamlessly translated the digital concept to the physical stage, featuring crisp lines and consistent features across all units. This build not only supported My Chemical Romance’s and TAIT’s artistic vision but also met the standards a touring production demands.
The project demonstrated the capability of CNC milling to achieve the scale and precision required by live entertainment. Scott System brought the same engineering discipline it applies to permanent architectural fabrication directly to the stage, the Long Live the Black Parade Tour proudly showcased “The Eye” to millions of fans worldwide.
