From Flat Image to Finished Concrete: Scott System’s Custom Crab Medallion Formliner
Project
Overview
Not every concrete application starts with a blueprint. Sometimes it starts with an image, a concept, or an idea on paper, and the challenge is bridging that gap between the two-dimensional and the three-dimensional with precision and consistency.
Scott System was tasked with producing a 48-inch-diameter concrete medallion formliner featuring a crab motif. The medallion was designed to be inset within a separate urethane dry-stack formliner system, making dimensional accuracy and edge integrity non-negotiable from the outset.
The Challenges
Translating a flat, 2D graphic into a dimensionally accurate 3D relief suitable for concrete casting required precise technical decisions at every stage:
- Maintain smooth relief depth and consistent transitions
- Achieve high surface clarity for fine graphic detail
- Ensure precise 48-inch sizing and clean edges for system integration
Any dimensional drift would compromise the visual result and prevent the medallion from fitting correctly within the surrounding dry-stack formliner system.
Want to Learn More About The Challenges?
The Vision
The goal was straightforward, even if the execution was not:
Deliver a formliner that could reliably reproduce a detailed graphic as a clean, durable concrete relief. The crab motif needed to be read clearly in cast concrete, which meant the 3D relief had to be deep enough to create visual definition without creating undercuts or geometry that would complicate the casting process. The surrounding dry-stack formliner context added another layer of expectation. The medallion would function as a focal element within a larger textured system, meaning it needed to complement, not conflict with, the surrounding work.
Proposed Solution
Scott System developed a streamlined, end-to-end process that moved the project from 2D reference image to finished formliner through a series of controlled, verifiable steps:
- Image Preparation: The source image was isolated and color-corrected to ensure a clean, high-contrast base for 3D modeling.

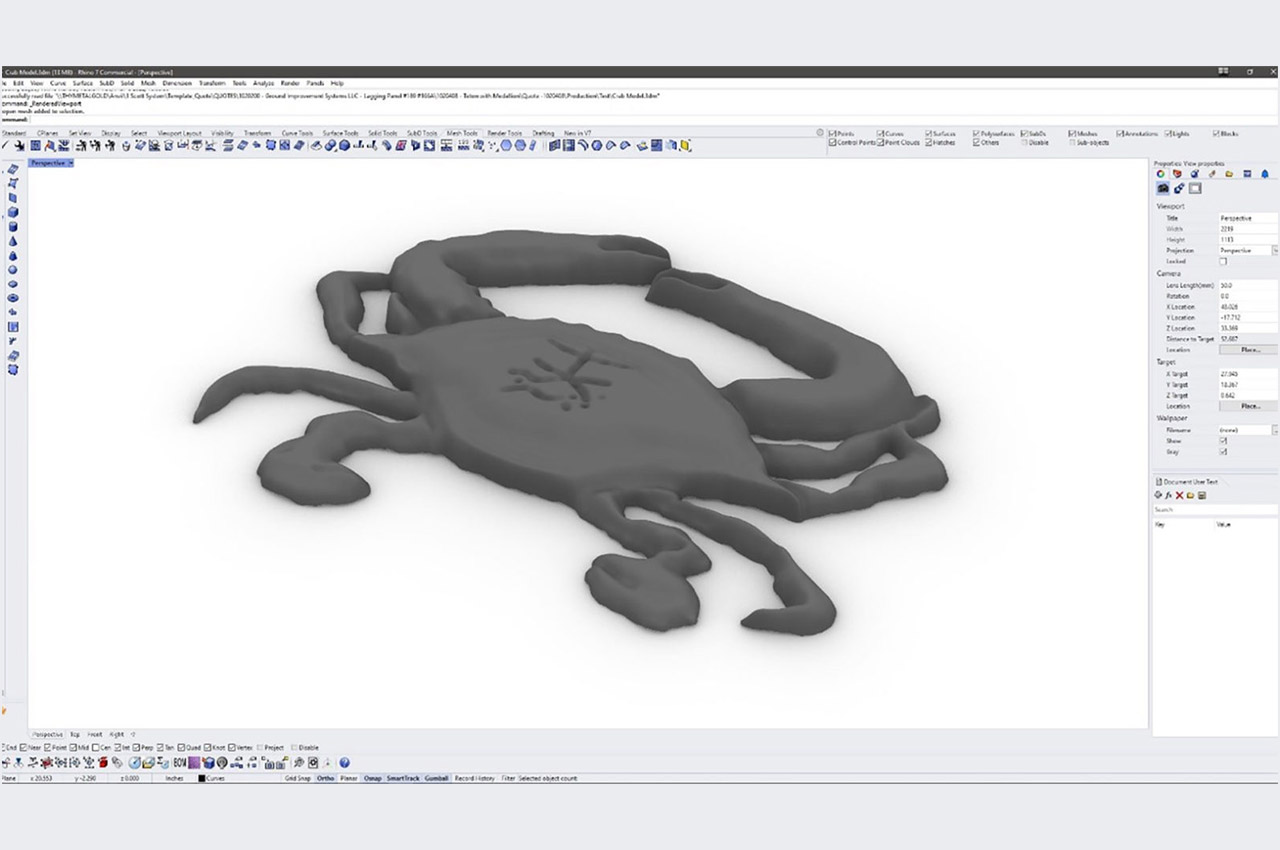

- CAD Modeling: The graphic was converted into a precise 3D CAD model, allowing for exact control over relief depth and geometry.
- Geometry Reversal: The digital design was reversed to create the necessary negative geometry required for an accurate formliner mold.

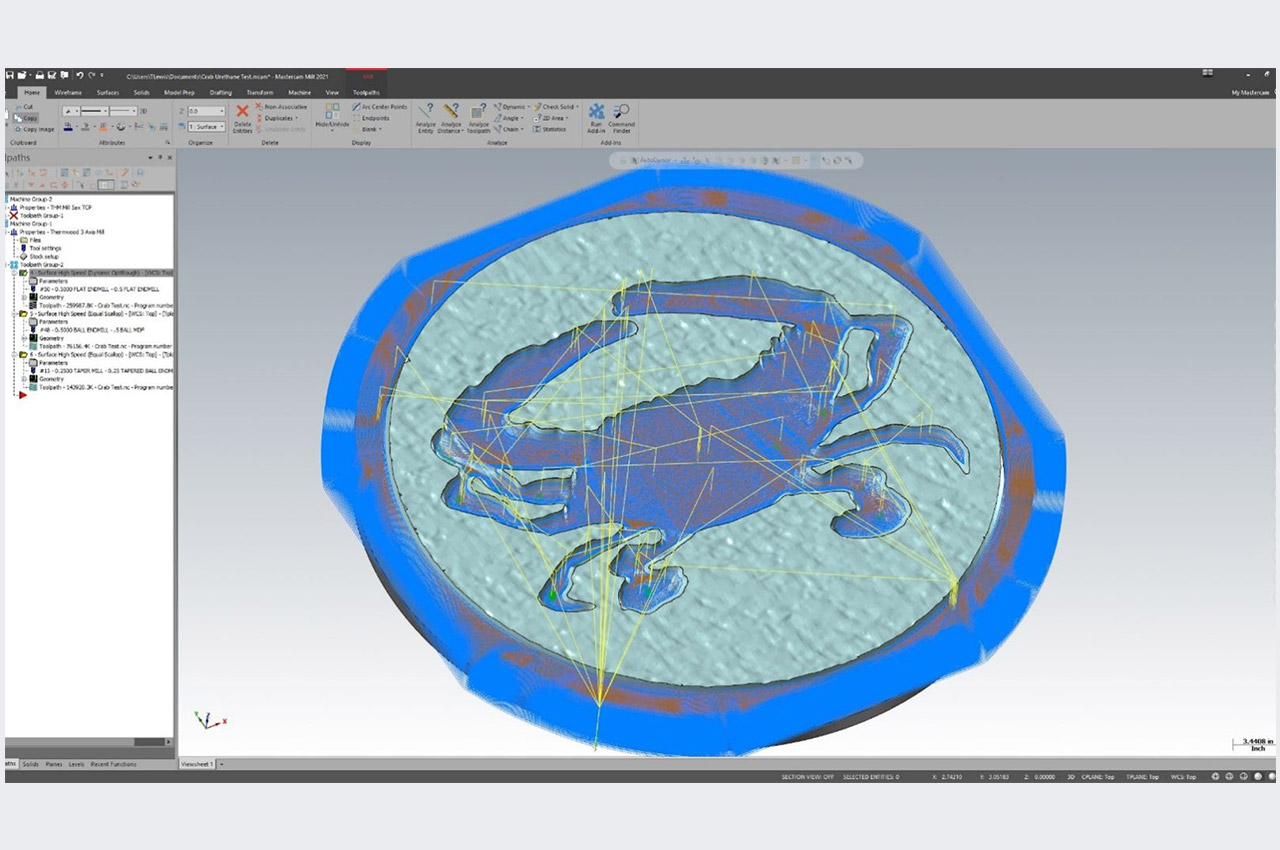

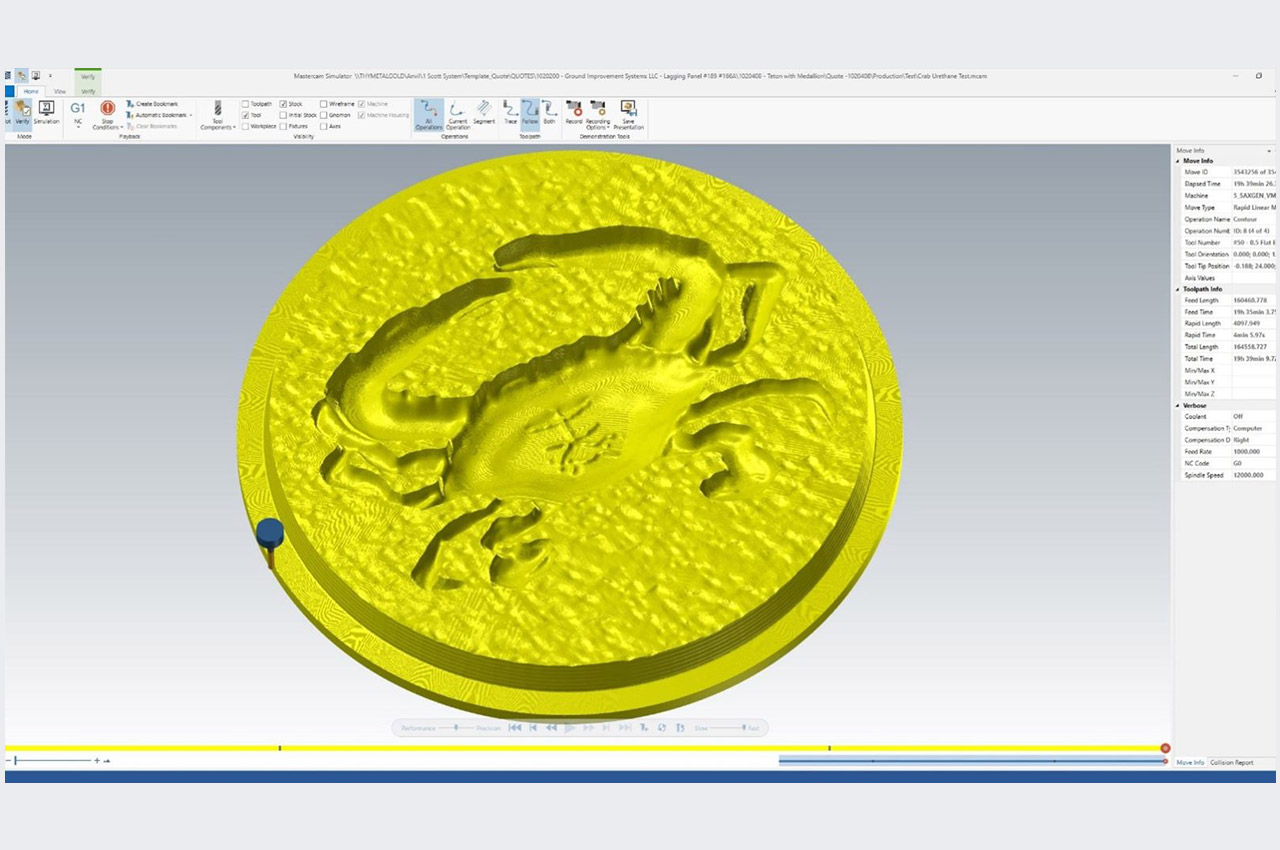

- Verification: CNC toolpaths were digitally simulated and verified against CAD specs to prevent errors before physical fabrication.
- Fabrication & QC: The liner was CNC-milled and underwent rigorous quality inspections to ensure dimensional precision across the 48-inch diameter.
Want to Learn More About Our Solutions?
Components for Success
- Integrated workflow: Seamless transition from 2D image to 3D CAD modeling and CNC fabrication ensures full traceability and precision.
- CNC precision: Verified toolpaths and advanced equipment maintain high surface detail and exact 48-inch sizing.
- Continuous QC: Quality inspections are integrated throughout the fabrication process to guarantee dimensional accuracy.
- Seamless integration: Design focused on edge precision ensures a perfect fit within the urethane dry-stack formliner system.
Products Used
Custom 3D Medallion Formliner (48-inch diameter, crab motif)
Urethane Dry-Stack Formliner System (surrounding inset context)
CNC Milling (toolpath-verified fabrication)
3D CAD Modeling (relief geometry development and negative conversion)
Want to Learn More About Our Products?
The Outcome
The finished formliner delivered a clean, durable, and highly detailed relief. The crab motif translated from 2D reference image to cast-concrete-ready formliner without loss of detail or dimensional integrity, demonstrating that graphic artwork and precision fabrication are not competing priorities.
The project is a concrete demonstration, in every sense, of what becomes possible when digital modeling, CNC machining, and quality-focused fabrication operate as a single integrated process. For applications requiring custom medallions, branded elements, or graphic concrete insets, Scott System’s 2D-to-3D capability offers a reliable, production-ready path from concept to cast.
